Pmax 300W Solar Panel PET ETFE 45W/50W/75W/100W solar plates for Car RV Boat Fan Power Bank Battery Solar Emergency Charge

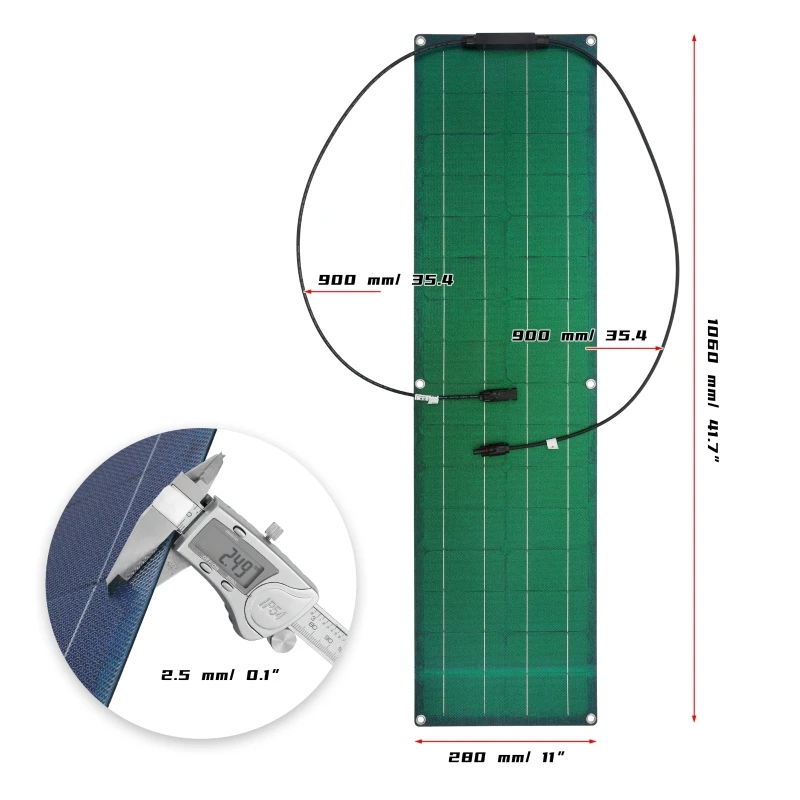

Style 1
Pmax: 50W
VmP: 17.6V
Voc: 20.8V
ImP: 2.6A
Isc: 3.1A
Cell conversion efficiency: 22.5%
Solar panel working environment: -40℃~85℃
Maximum system voltage: 1000V
Size: 1060x280x3mm

Style 2
Material: ETFE
Clamp applicable voltage: DC 18V
Pmax: 75W
VmP: 22.4V
Voc: 26.0V
ImP: 3.34A
Isc: 3.6A
Cell conversion efficiency: 23%
Solar panel working environment: -40℃~85℃
Maximum system voltage: 1000V

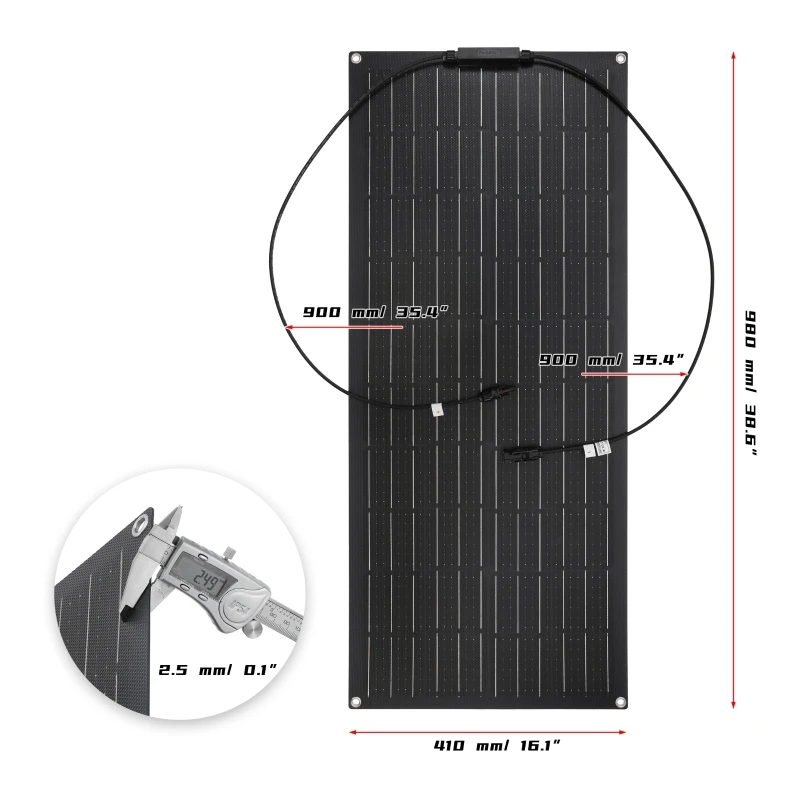

Size: 980* 410* 2.5mm

Style 3
Material: ETFE + Aluminum + Monocrystalline Silicon
Pmax: 45W
VmP: 17.6V
Voc: 20.8V
ImP: 2.55A
Isc: 2.7A
Cell conversion efficiency: 22.5%
Solar panel working environment: -40℃~85℃
Maximum system voltage: 1000V

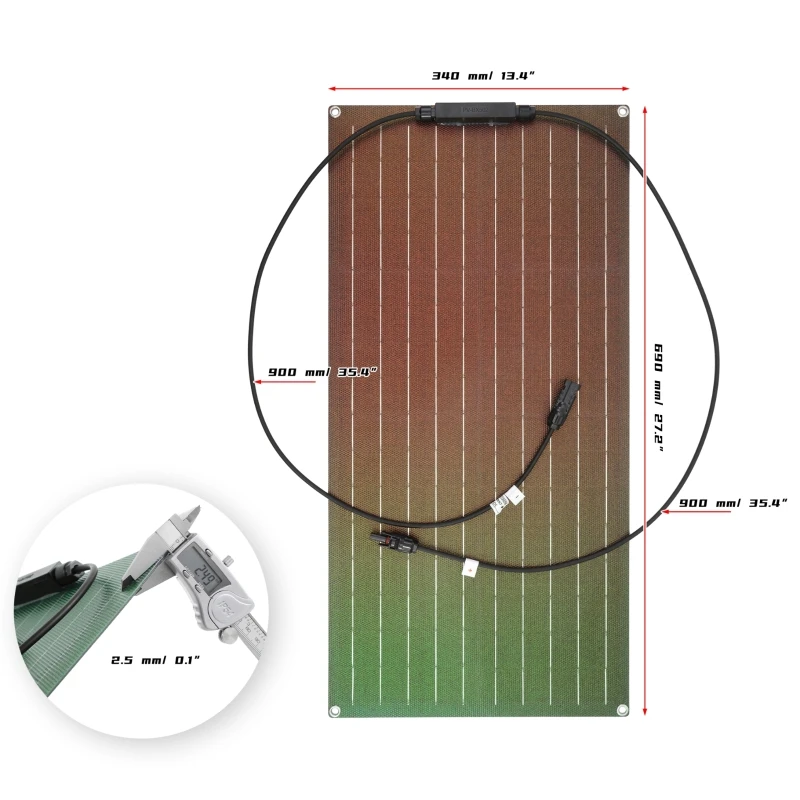

Size: 690x340x2.5mm

Style 4
Cell Type: Monocrystalline Silicon Solar Cell
Rated Power: 50W
Module Efficiency: 21%
Number of Cells: 36Pcs
Power Tolerance: ±5W
Open Circuit Voltage: 20V
Short Circuit Current: 3A
Maximum Power Point Operating Voltage: 18V
Maximum Power Point Operating Current: 2.5A
Front Glass: ETFE
Packaging Material: PET+EVA+Cells+ETFE
Rear Glass: PET
Junction Box: Long Strip Junction Box

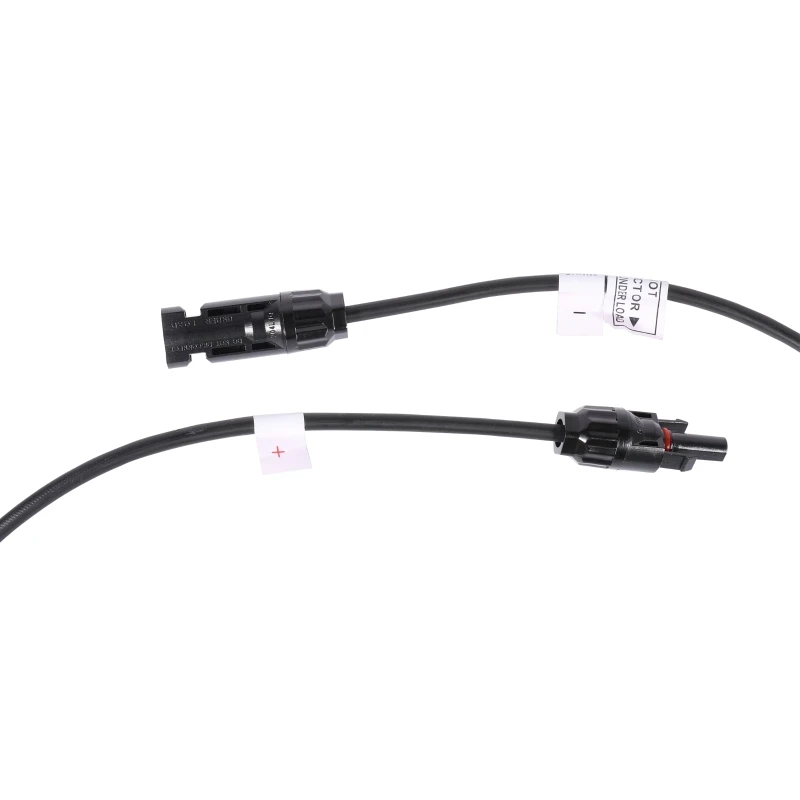

Cable: Photovoltaic Cable
Service Life: 15 Years

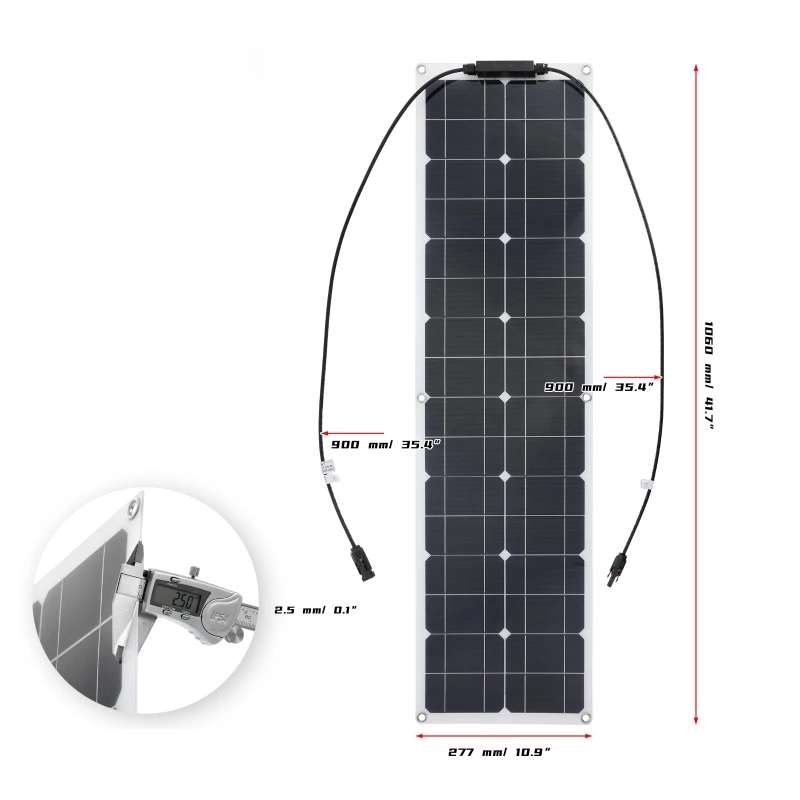

Size: 1060*277*2.5mm

Style 5
Front glass: ETFE
Packaging material: PET+EVA+battery sheet+ETFE
Back glass: PET
Battery type: Monocrystalline silicon solar cell
Rated power: 50W
Number of cells: 36Pcs
Short circuit current: 3A
Maximum power point operating voltage: 18V
Maximum power point operating current: 2.5A

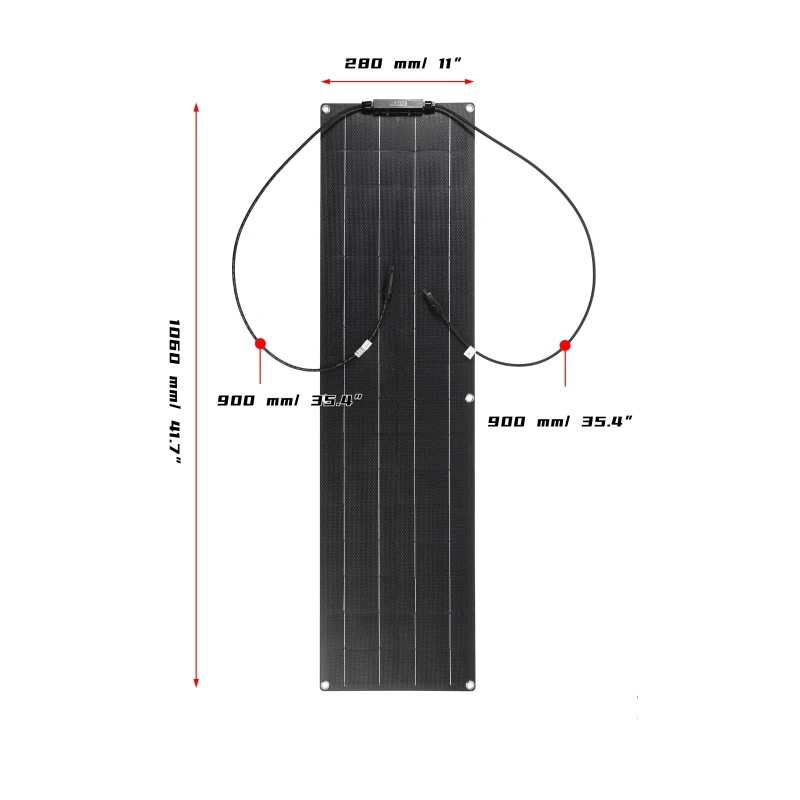

Size: 1060*280*2.5mm

Style 6
Battery type: monocrystalline silicon solar cells
Number of cells: 36pcs
Rated power: 100W
Power tolerance: ±5
Open circuit voltage: 21V
Short circuit current: 6A
Maximum power point operating voltage: 18v
Maximum power point operating current: 5.5A
Packaging material: PET
Chemical Type: EVA
Junction Box: MCA
Service life: 10 years

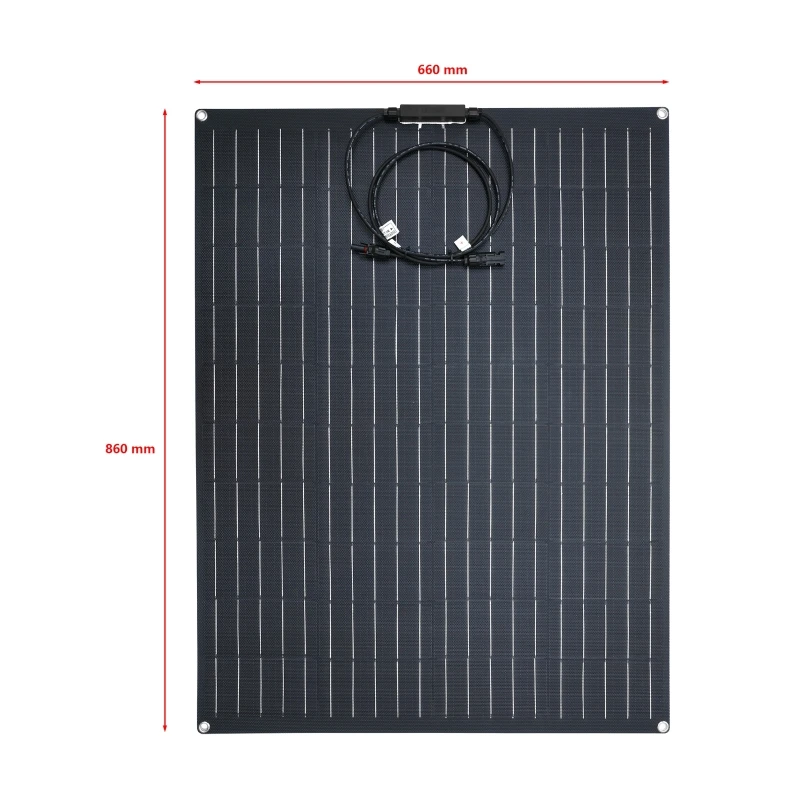

Size: 860*660mm

Style 7
Material: PET
Peak power: 100W
Power difference: ±3%
Peak voltage: 18V
Peak current: 5.6A
Open circuit voltage: 21.6V
Short circuit current: 6.12A
Cells: 9*4
Size: 1020*510mm

Style 8
Battery type: monocrystalline silicon solar cells
Rated power: 100W
Module efficiency: 20.3%
Power tolerance: ±5
Open circuit voltage: 21V
Short circuit current: 6A
Maximum power point operating voltage: 18v
Maximum power point operating current: 5.5A
Packaging material: PET
Chemical Type: EVA
Junction Box: MCA

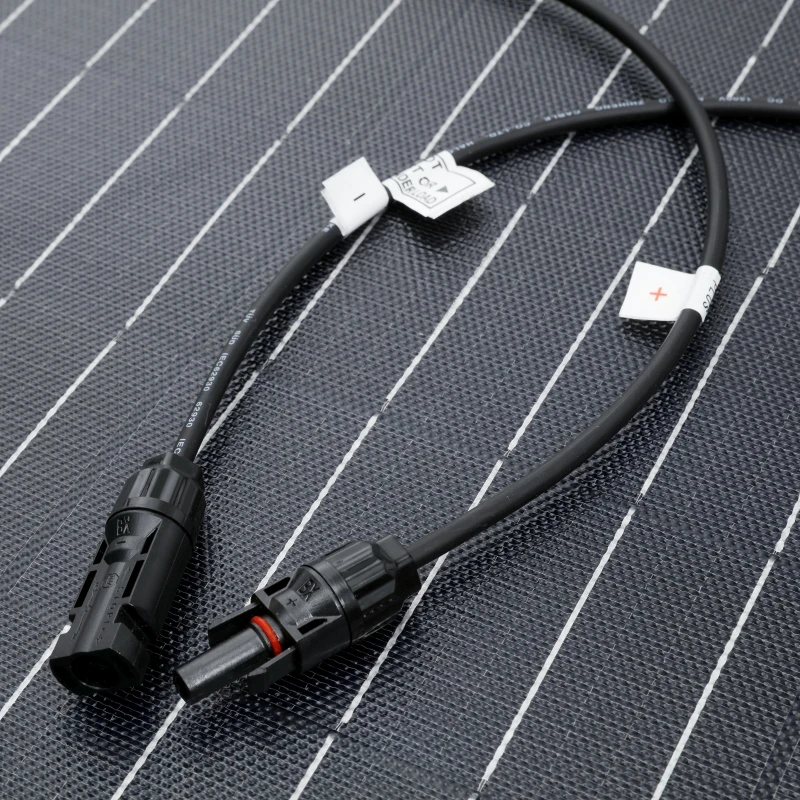

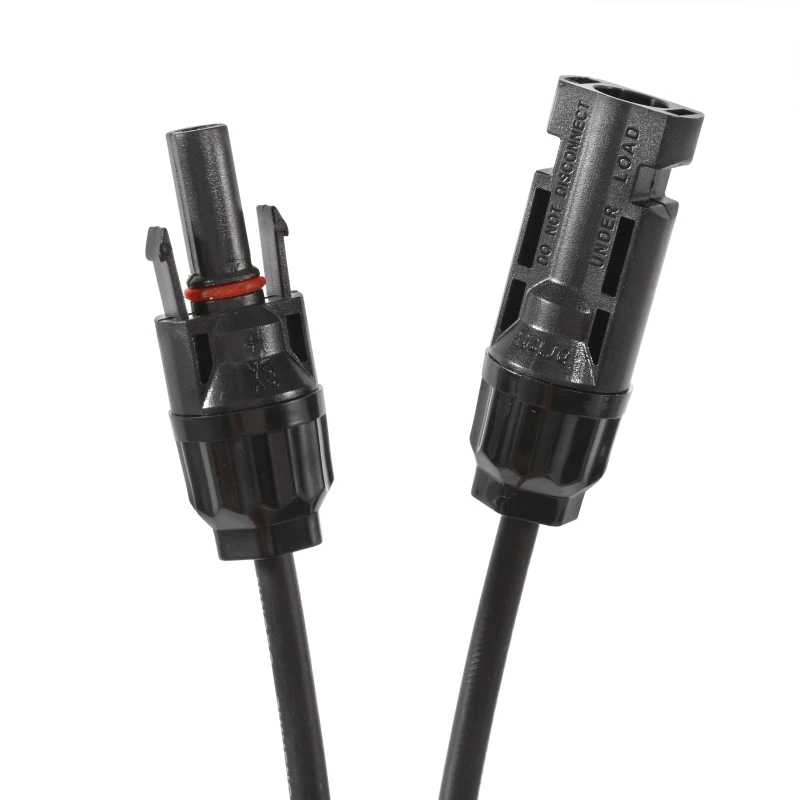

Connector: MC4
Service life: 10 years

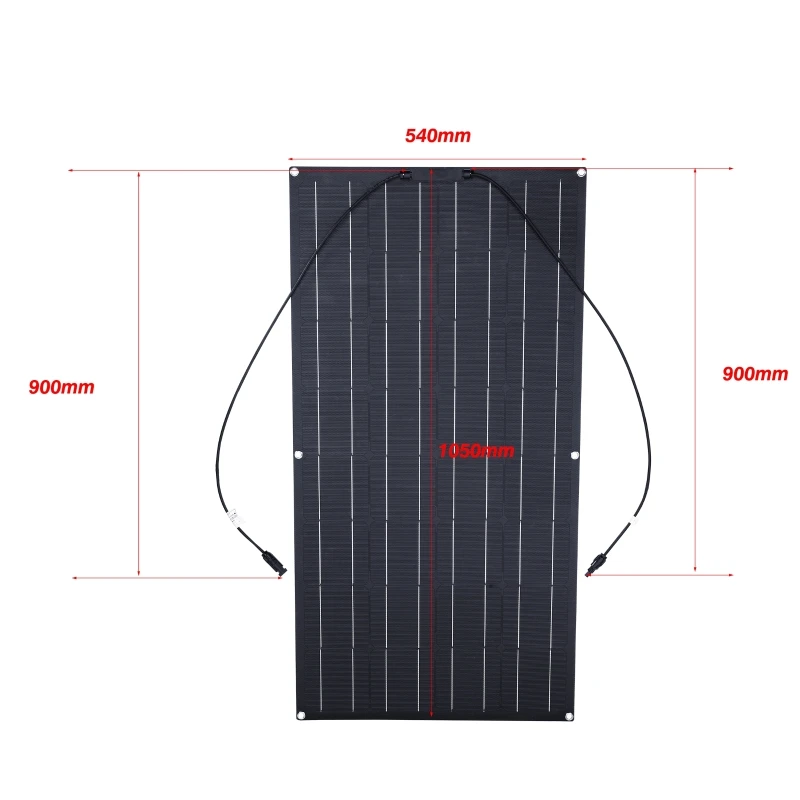

Size: 1050*540mm
