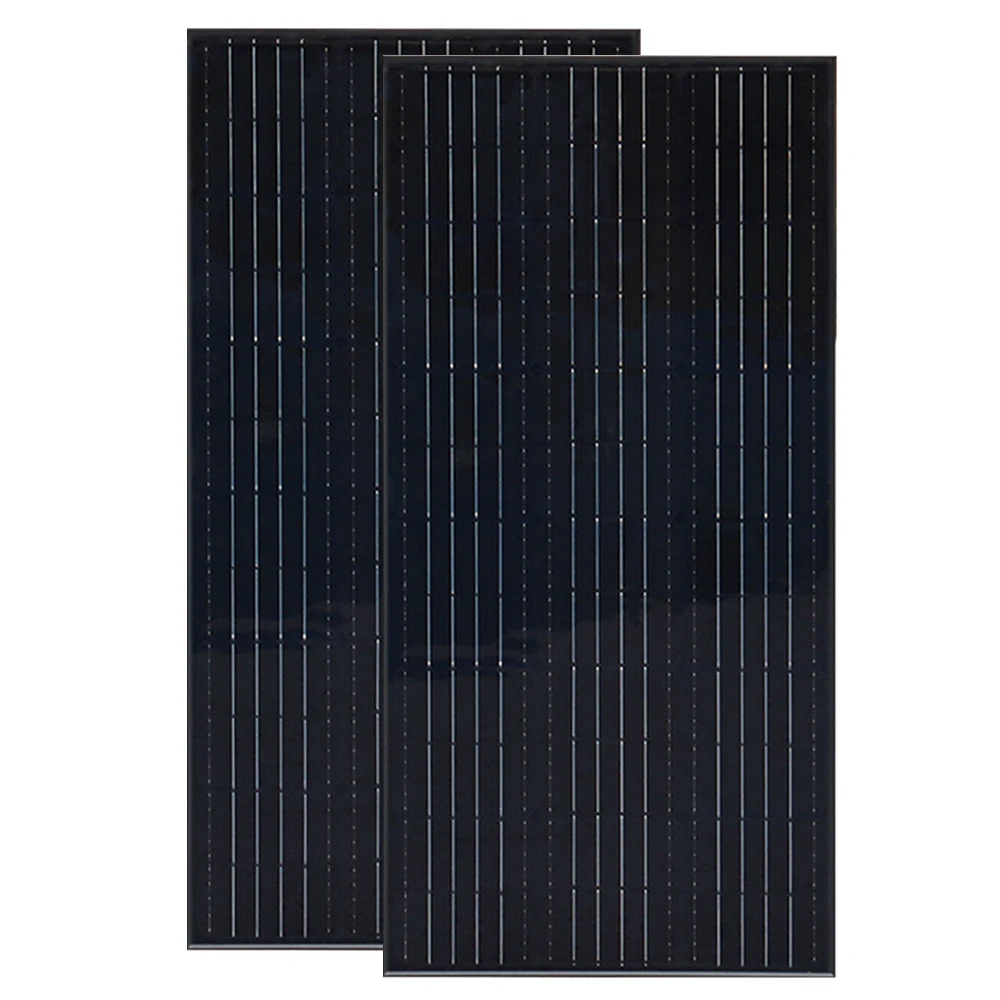

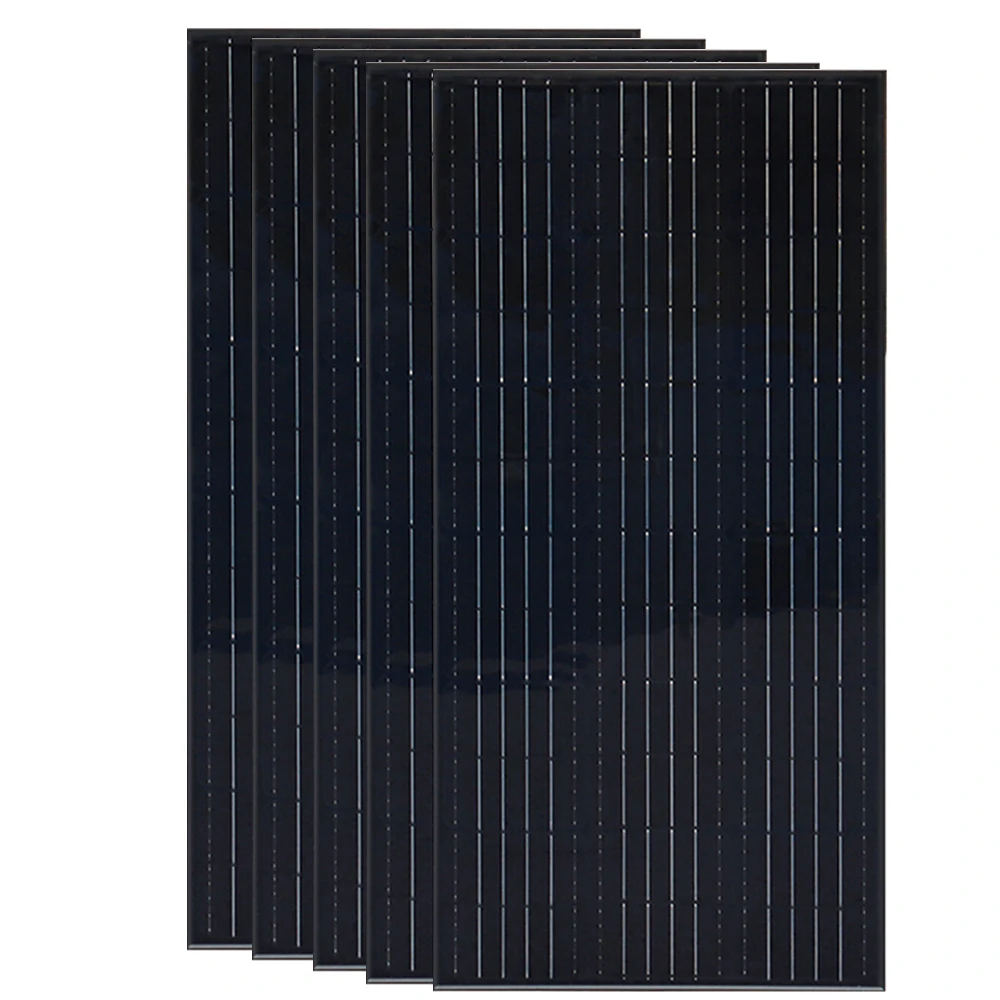

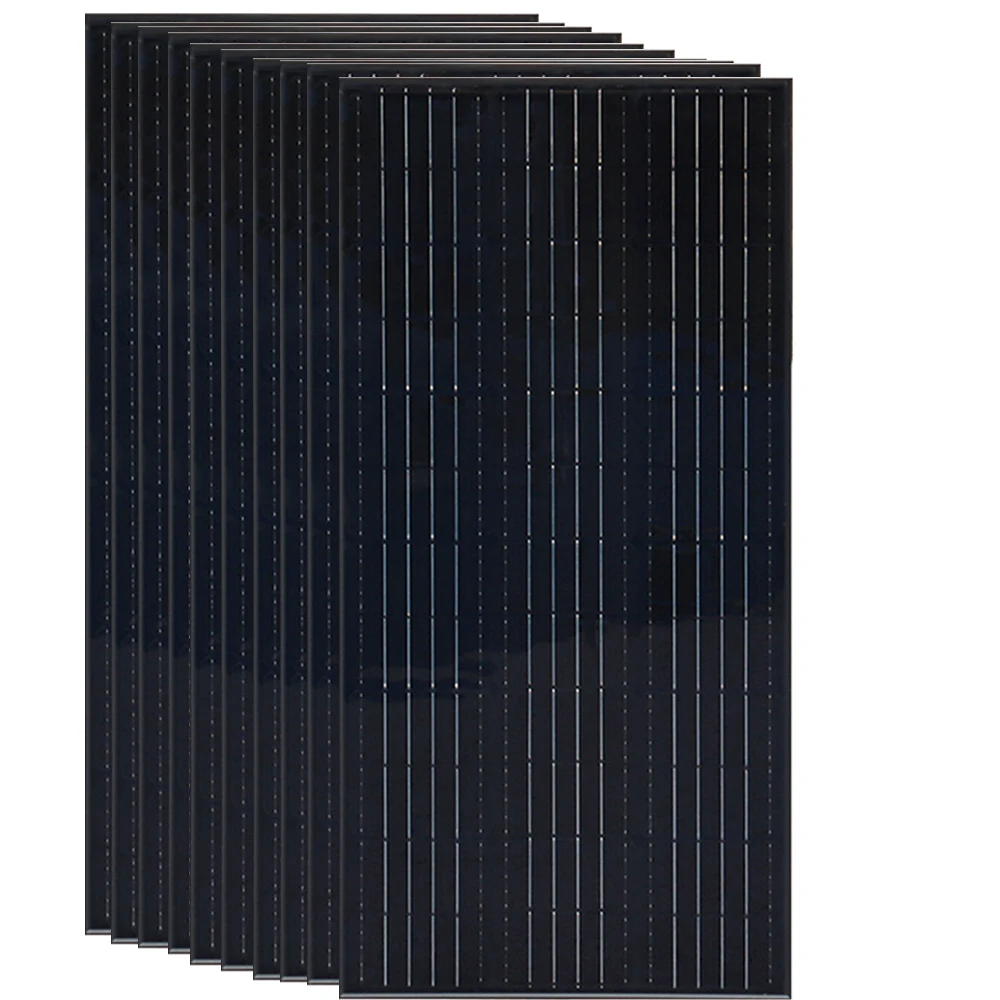

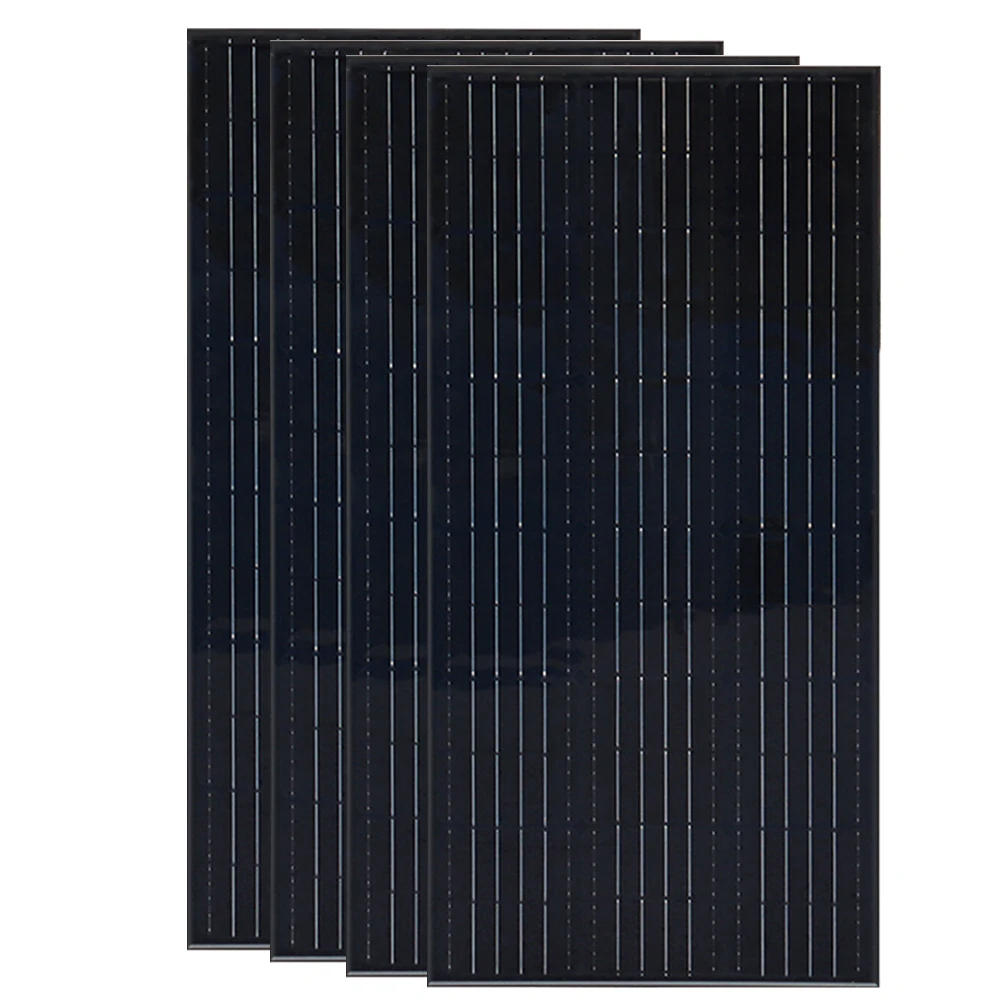

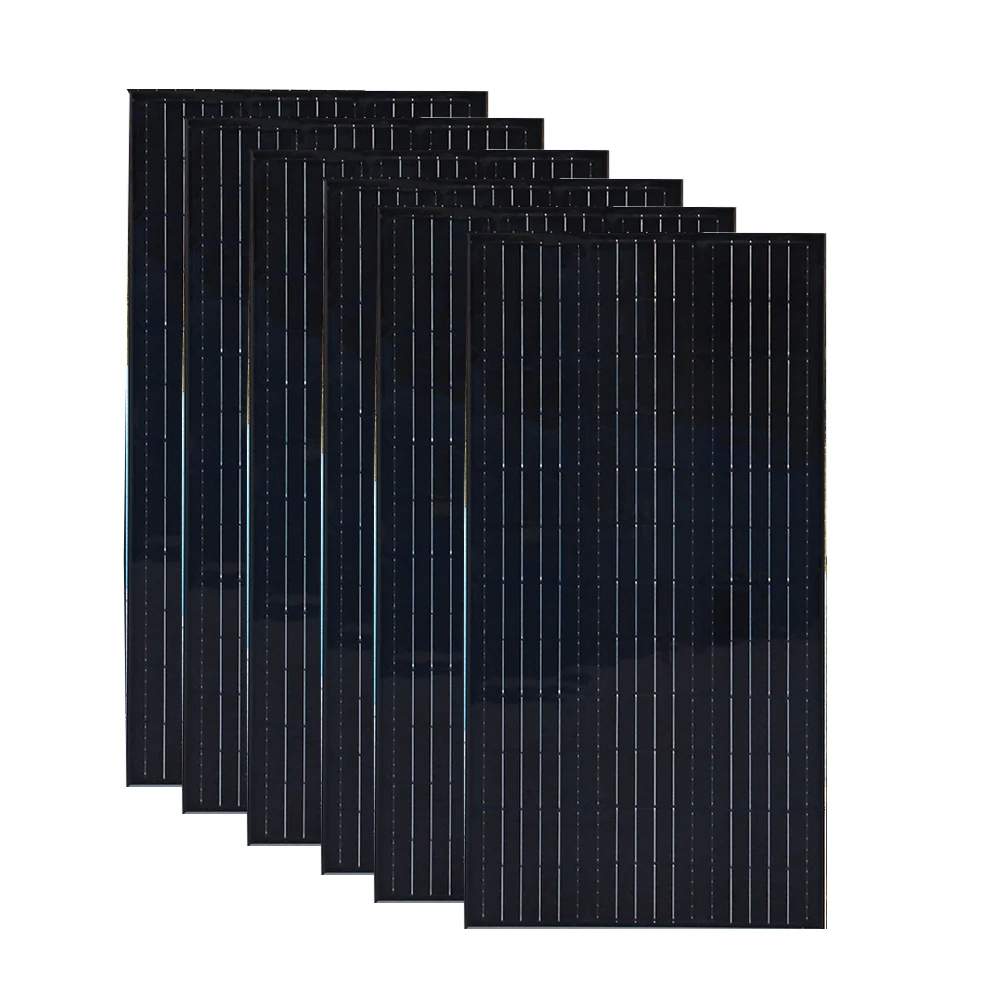

Solar Panel Photovoltaic Module 1000W 600W 500W 400W 300W 200W 100W 19.8V Monocrystalline Solar Panels Battery Charger 100 W

Solar Panel Photovoltaic Module 1000W 600W 500W 400W 300W 200W 100W 19.8V Monocrystalline Solar Panels Battery Charger 100 W

☛ PRODUCT FEATURES:

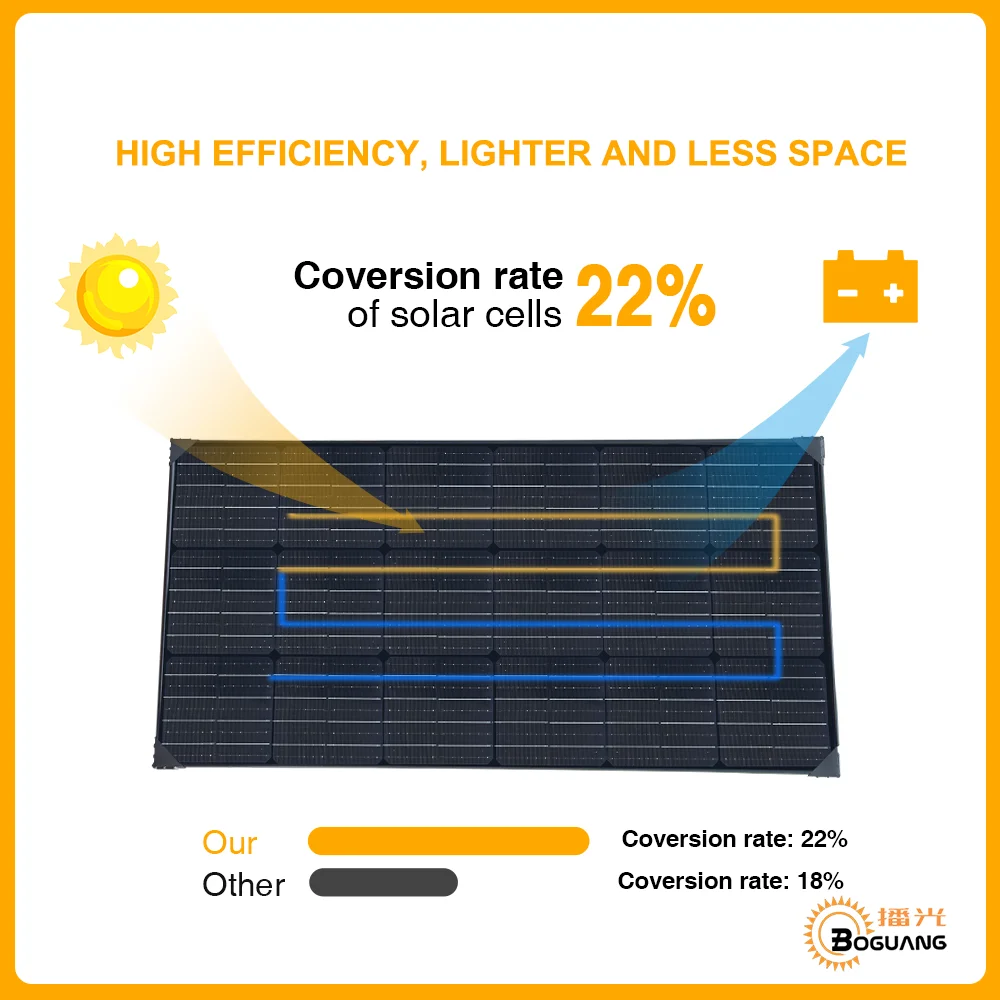

(A) HIGH EFFICIENCY: USING 166*166 MM MONOCRYSTALLINE SOLAR CELL, CONVERSION EFFICIENCY IS UP TO 23%, MORE EFFECTIVE THAN MANY KINDS OF SOLAR CELLS IN THE PHOTOVOLTAIC MARKET.

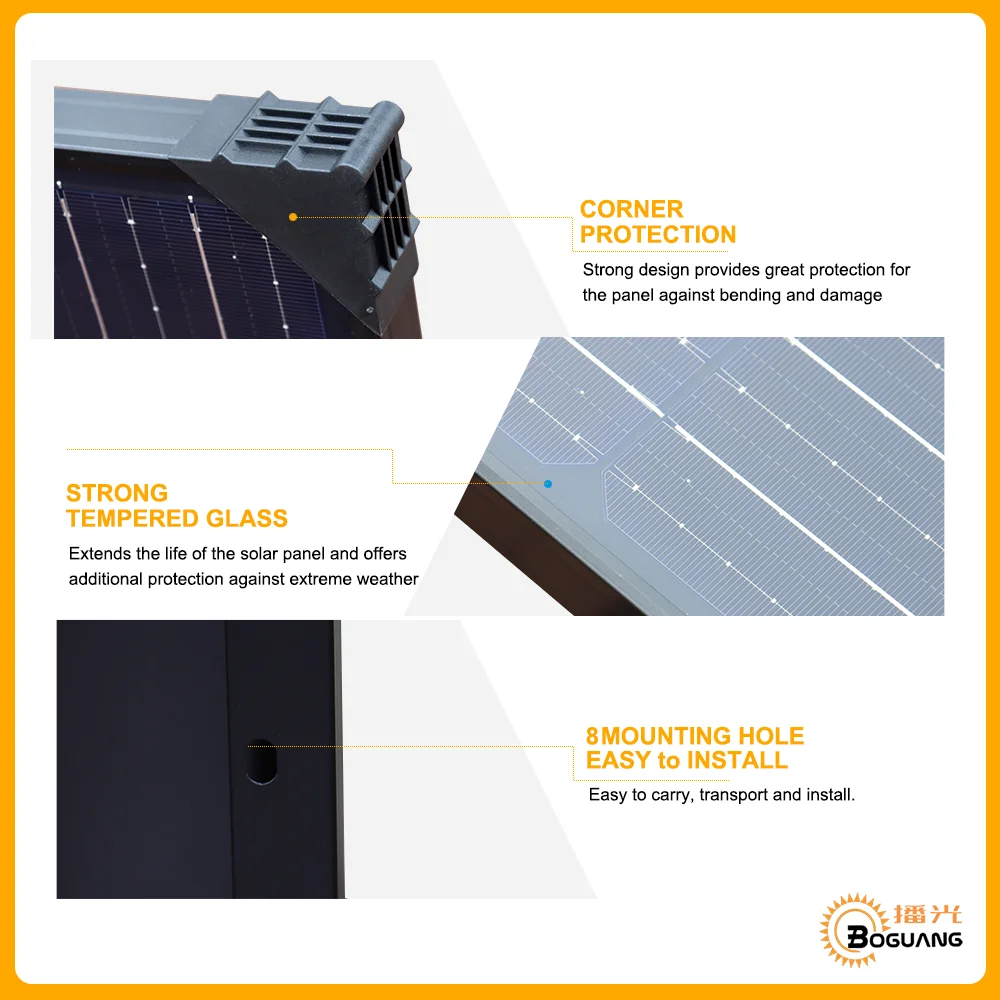

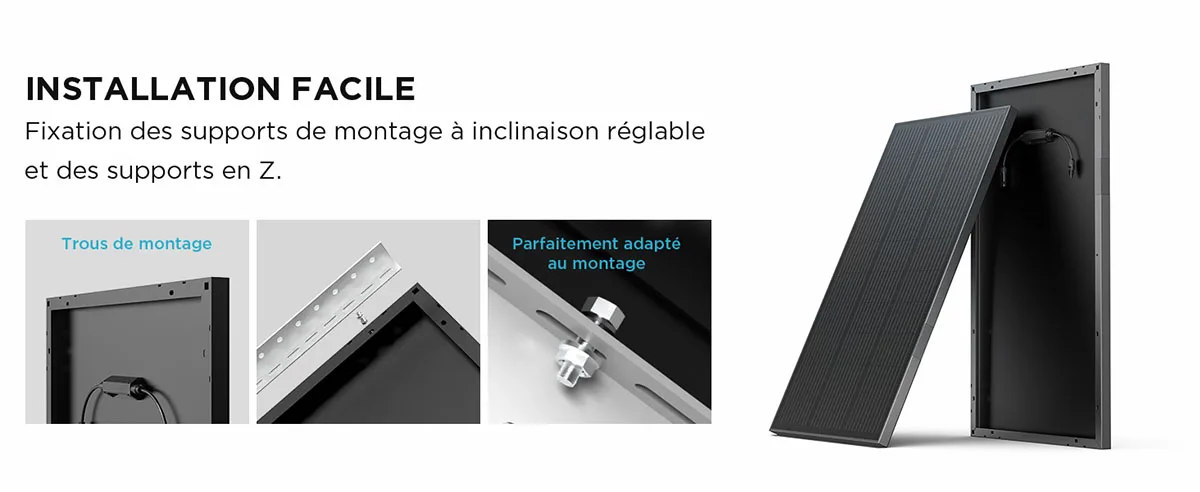

(B) SAFETY: THE SOLAR PANEL IS EMBEDDED WITH BYPASS DIODES, WHICH CAN EFFECTIVELY PROTECT THE SOLAR PANEL. THE ALUMINUM FRAME WITH HOLES FIXED WITH SCREWS MAKES INSTALLATION EASY.

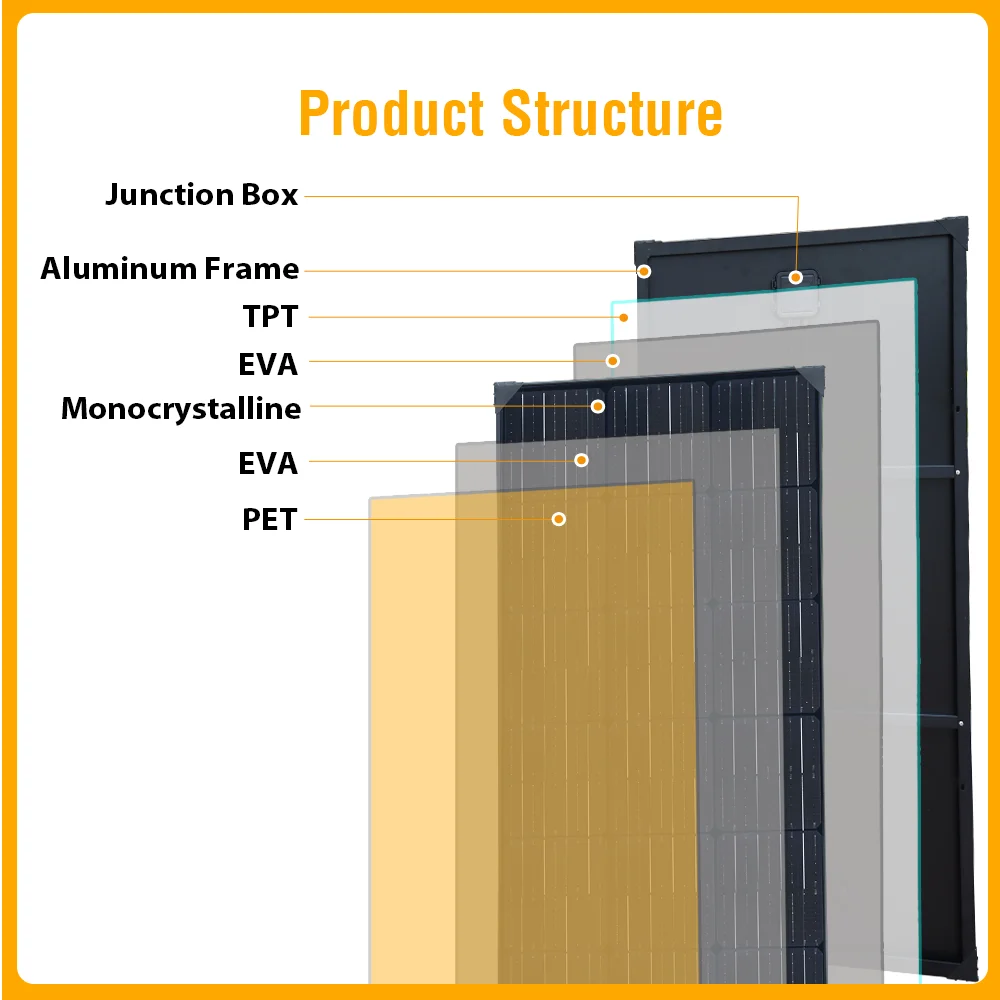

(C) DURABILITY: THE SURFACE OF THE SOLAR PANEL IS MADE OF PET, AND THE SURROUNDING ALUMINUM FRAME IS USED. IT HAS A SIGNIFICANT EFFECT ON WATERPROOF AND CORROSION RESISTANCE.

(D) WIDE APPLICATION RANGE: THROUGH THE CONVERSION OF LIGHT ENERGY INTO ELECTRIC ENERGY, THIS SET OF PRODUCTS CAN BE USED IN PLACES WHERE ELECTRIC ENERGY CANNOT BE REACHED, SUCH AS SEA, ISLANDS, DESERTS, AND MOUNTAINS. IN ADDITION, SOLAR PANELS CAN ALSO BE USED AS EMERGENCY POWER SOURCES OUTDOORS. WHEN THE SOLAR PANEL IS USED WITH THE BATTERY KIT, IT CAN ALSO BE USED INDEPENDENTLY AS AN OFF-GRID SYSTEM.

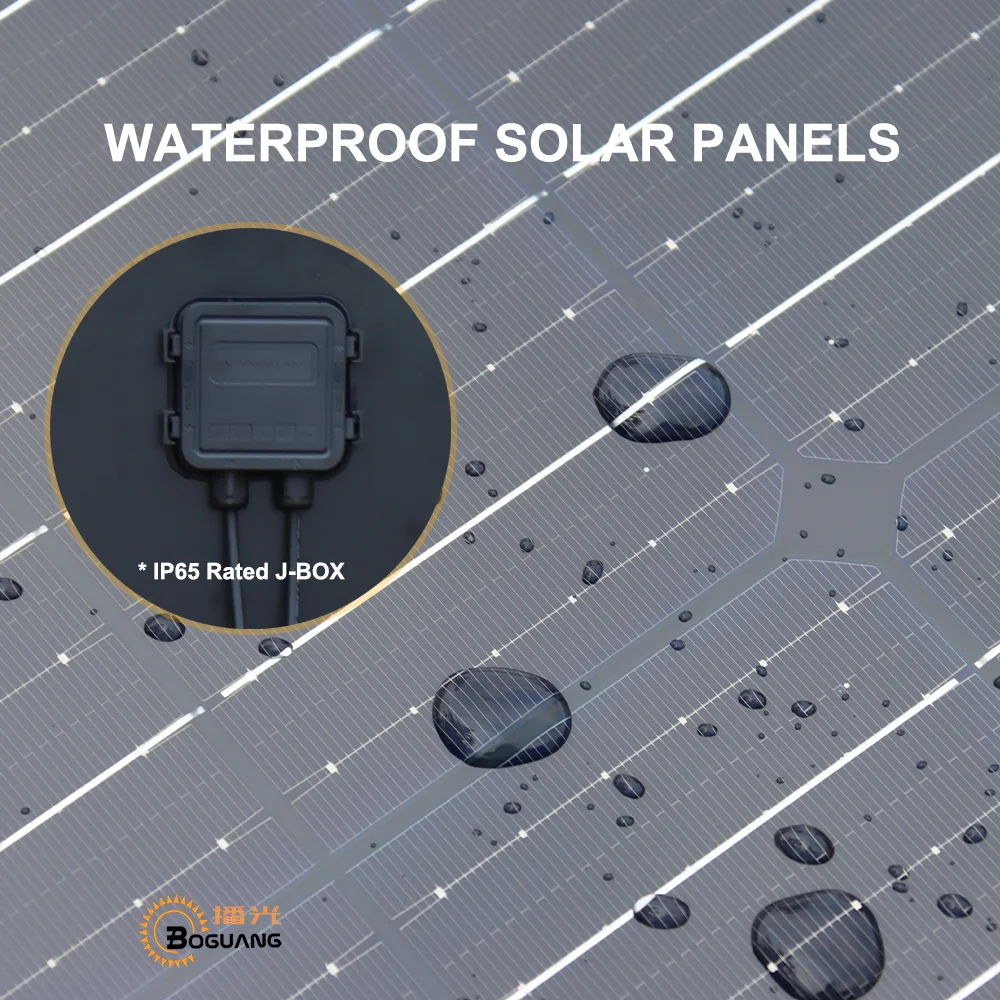

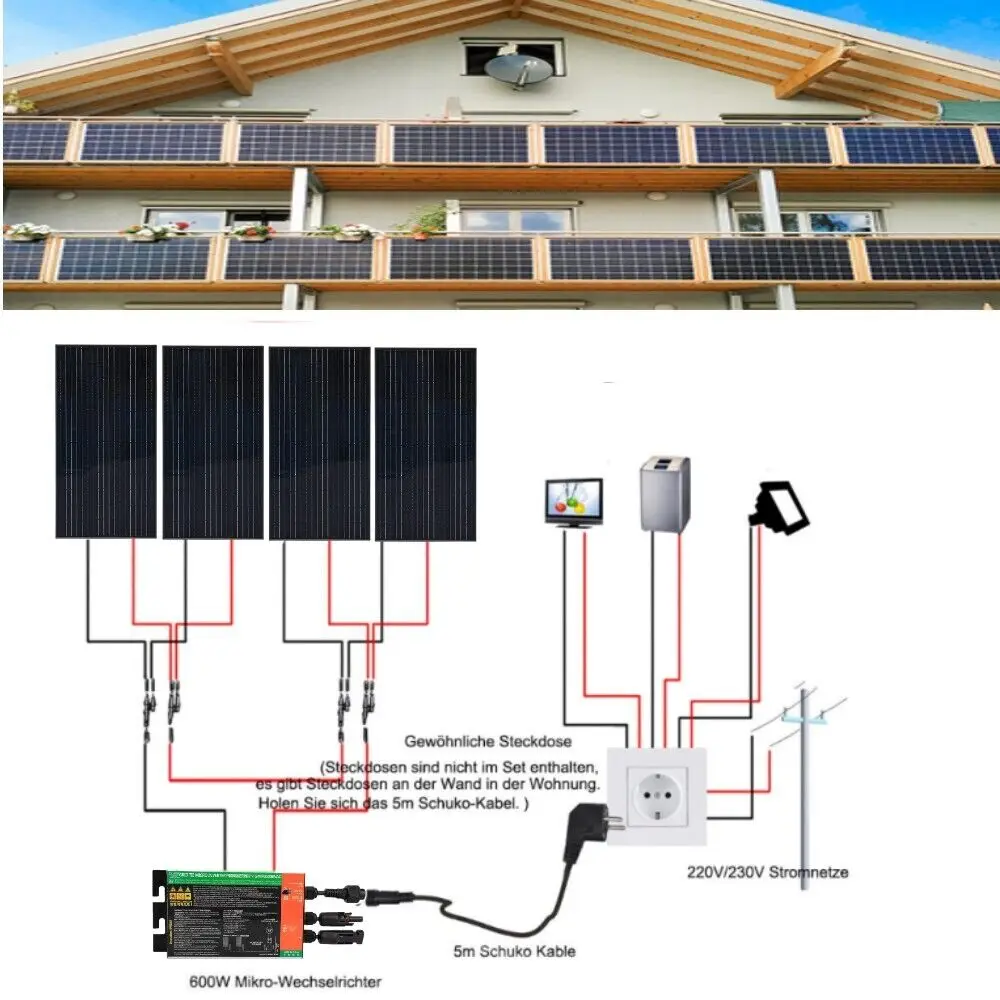

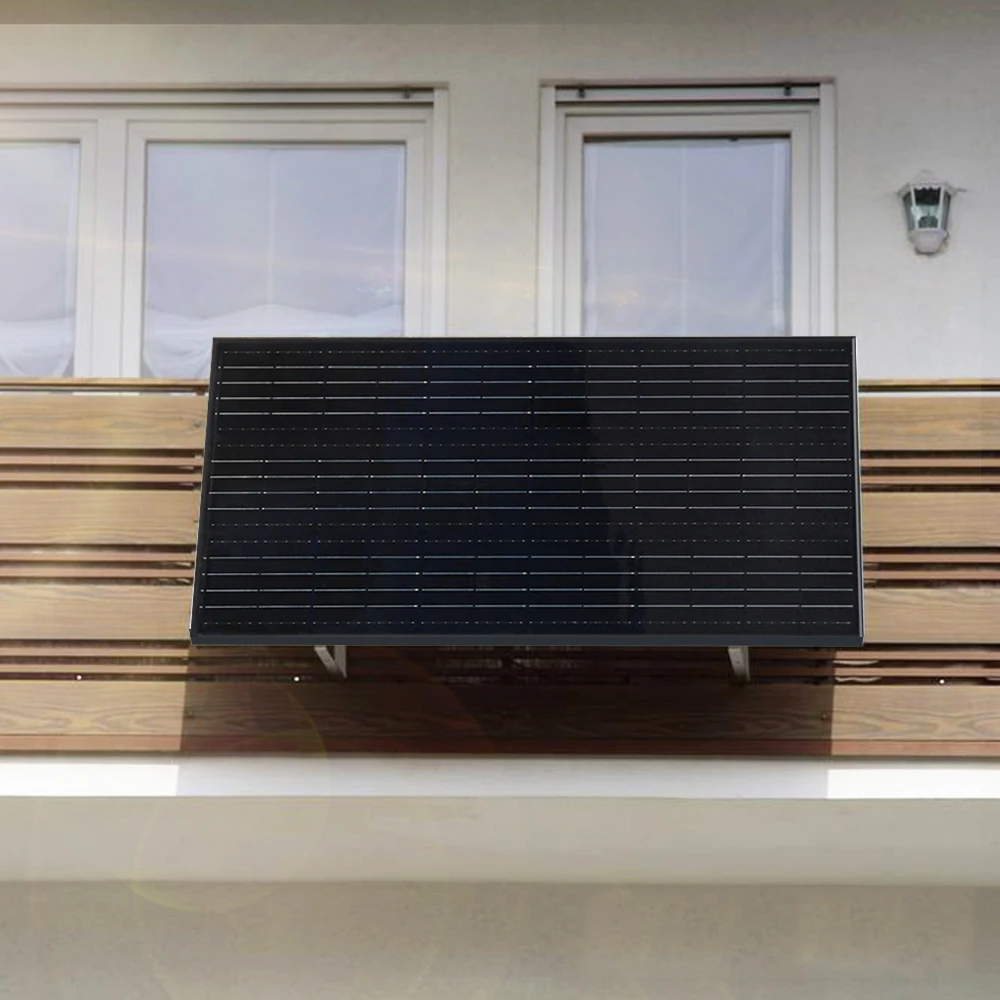

(E) PRACTICABILITY: THE SOLAR PANEL ADOPTS IP67 WATERPROOF GRADE MATERIALS, WHICH ARE VERY SUITABLE FOR OUTDOOR EQUIPMENT AND PLACES IN DESIGN AND USE. THEY CAN BE USED ON ROOFS, GARDENS, COURTYARDS, RVS, CAMPERS, TRAILER, CAMPING TENTS, YACHTS, CHARGING BOATS, STREET LIGHTS, CAR BATTERIES , BALKONKRAFTWERK AND OTHER SCENARIOS.

☛ ABOUT SOLAR PANEL：

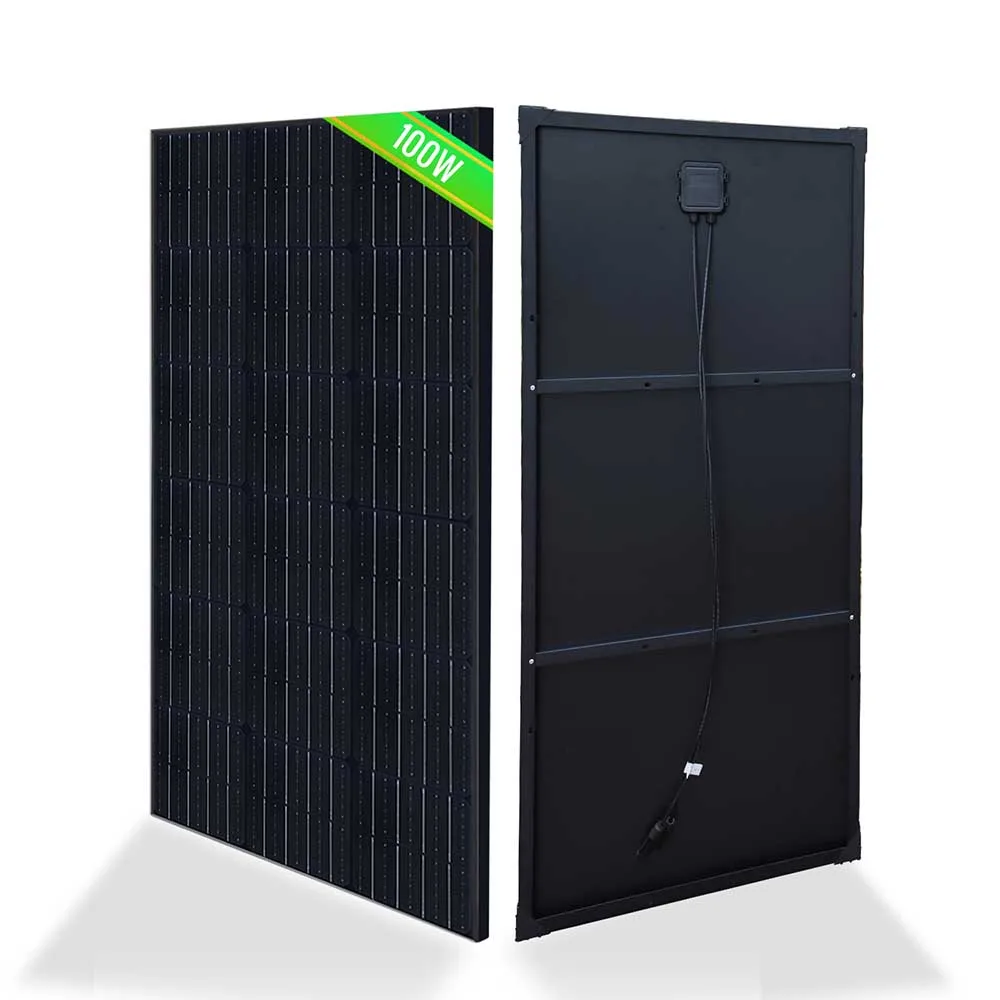

MAXIMUM POWER(PMAX): 100W

TYPE OF CELL : MONOCRYSTALLINE SILICON (PERC)

CELL EFFICIENCY : 23%

MAXIMUM SYSTEM VOLTAGE: 700V DC

OPEN CIRCUIT VOLTAGE(VOC): 23.76V

SHORT CIRCUIT CURRENT(ISC) : 5.5A

MAXIMUM POWER VOLTAGE(VMP) : 19.8V

MAXIMUM POWER CURRENT(IMP) : 5.05A

LENGTH OF CONNECTING CABLE: 90 CM

NUMBER OF CELLS: 36PCS

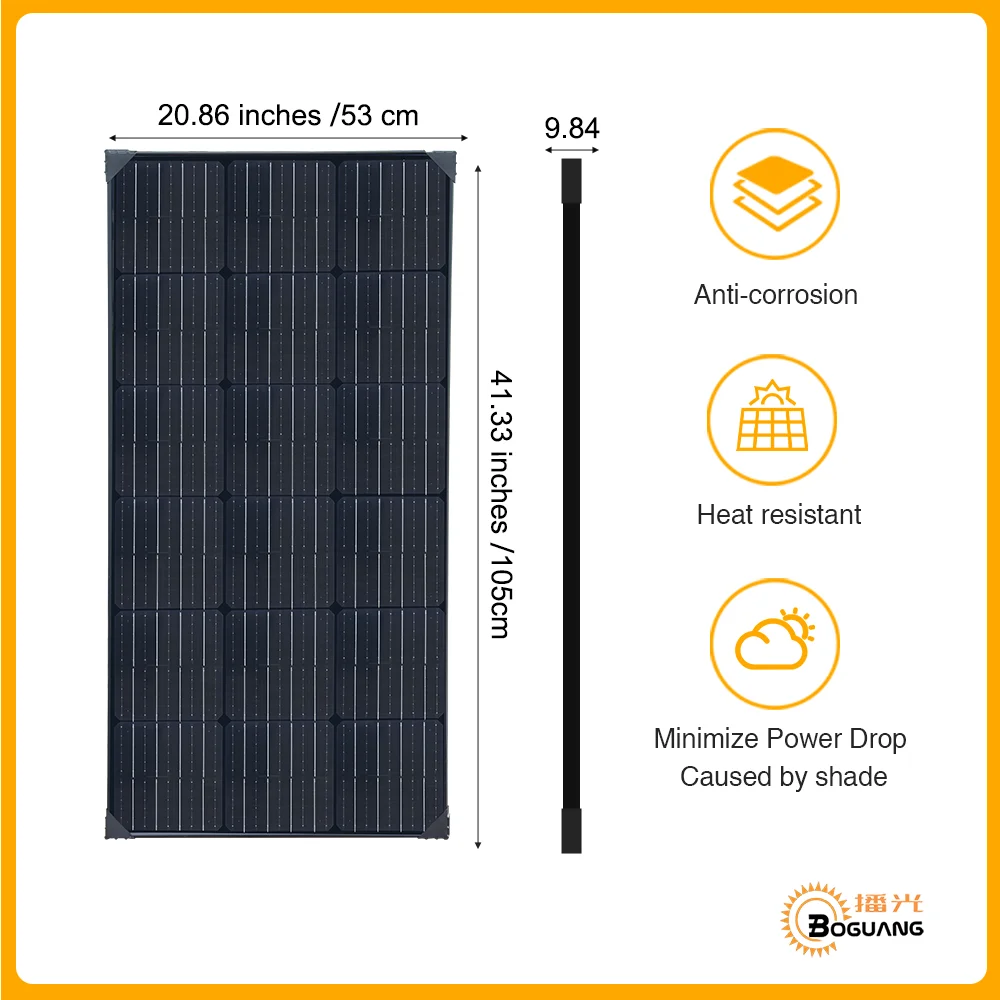

SIZE: 1050×530×25 MM (41.33×20.86×0.98 INCH)

OPERATING TEMPERATURE（NOCT）: 45±2℃

TEMPERATURE RANGE: -40℃～+80℃

STANDARD TEST CONDITIONS (STC)： IRRADIANCE 1000W/M², TEMPERATURE 25℃, AM=1.5

☛ SHIPPING AND CUSTOMS CLEARANCE

WE WILL SELECT APPLICABLE LOGISTIC CARRIER TO HELP SHIP PRODUCTS. AND PLEASE NOTICE THESE TIPS:

① PLEASE DO NOT USE THE PO BOX ADDRESS WHEN YOU PLACE THE ORDER. IN MANY CASES, THE LOGISTICS COMPANY CANNOT DELIVER THE PO BOX ADDRESS NORMALLY.

② PLEASE ENSURE THAT YOUR PHONE AND ADDRESS INFORMATION IS ACCURATE AND VALID. WHEN THE LOGISTICS DELIVERS THE PACKAGE, THE INVALID PHONE NUMBER AND ADDRESS WILL AFFECT THE TRANSPORTATION AND DELIVERY.

③ OUR PRICE DOESN'T INCLUDE THE IMPORT CUSTOMS DUTIES, YOU MAY NEED TO COOPERATE WITH THE LOGISTICS COMPANY FOR THE CUSTOMS CLEARANCE. BEFORE YOU PLACE THE ORDER, YOU’D BETTER LEARN MORE ABOUT CUSTOMS CLEARANCE POLICY IN YOUR COUNTRY/AREA.

☛ CUSTOMER SATISFACTION AND FEEDBACK

WE CONCENTRATE ON PROVIDING THE BEST SHOPPING EXPERIENCE FOR OUR CUSTOMERS, IF YOU HAVE ANY QUESTION WITH THE PRODUCT, PLEASE FEEL FREE TO CONTACT US AND WE WILL PROVIDE YOU A SATISFYING SOLUTION.

BESIDES, YOUR FEEDBACK IS VERY IMPORTANT FOR OUR BUSINESS’S DEVELOPMENT, WE SINCERELY INVITE YOU TO LEAVE POSITIVE FEEDBACK IF YOU ARE SATISFIED AT OUR PRODUCTS AND SERVICES. THANK YOU！

Notes for use:

a. This product must not come into contact with highly corrosive substances.

b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

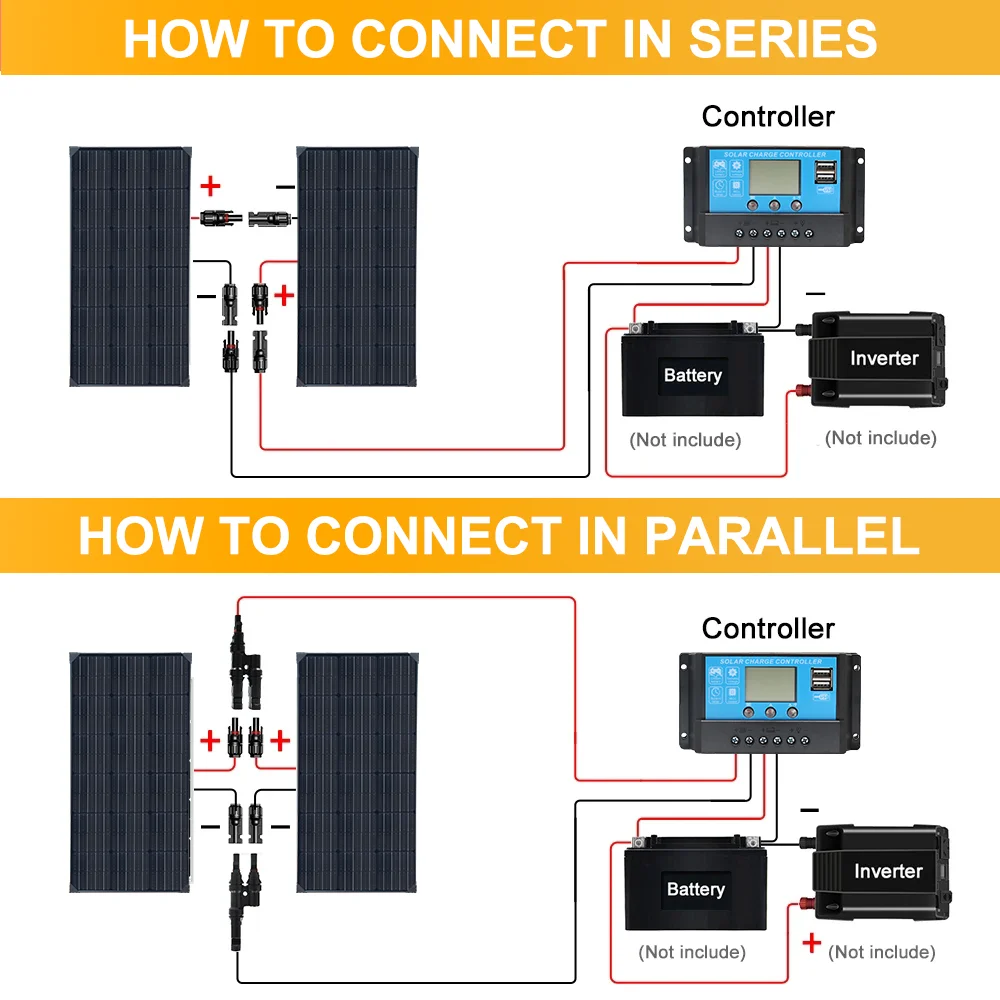

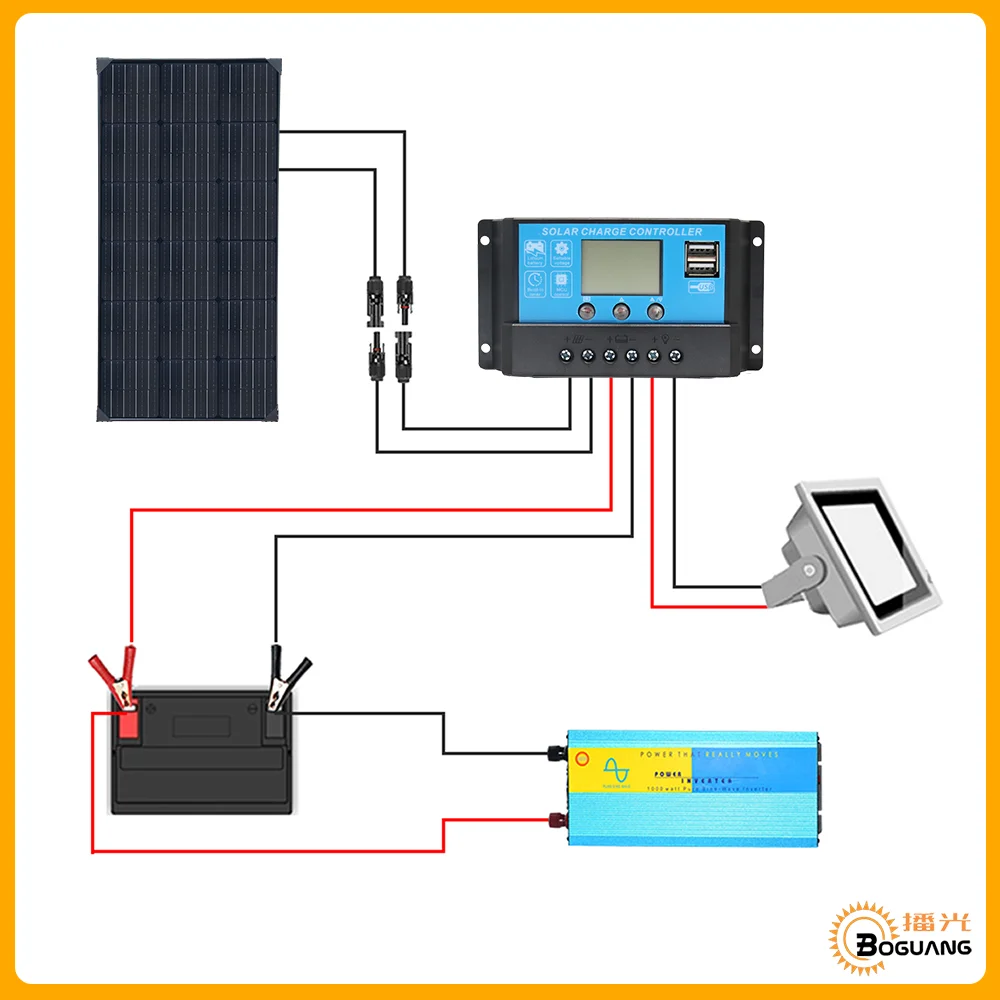

g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.

h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

i. The inverter can only be connected to the battery, not directly to the controller.
