100W 12V High Efficiency Mono crystalline Light weight Flexible solar panels for RV, Marine, Motor Home, Caravan, Camper, Boats, Tent, Trailer or any Irregular Surface and Uneven Surface.

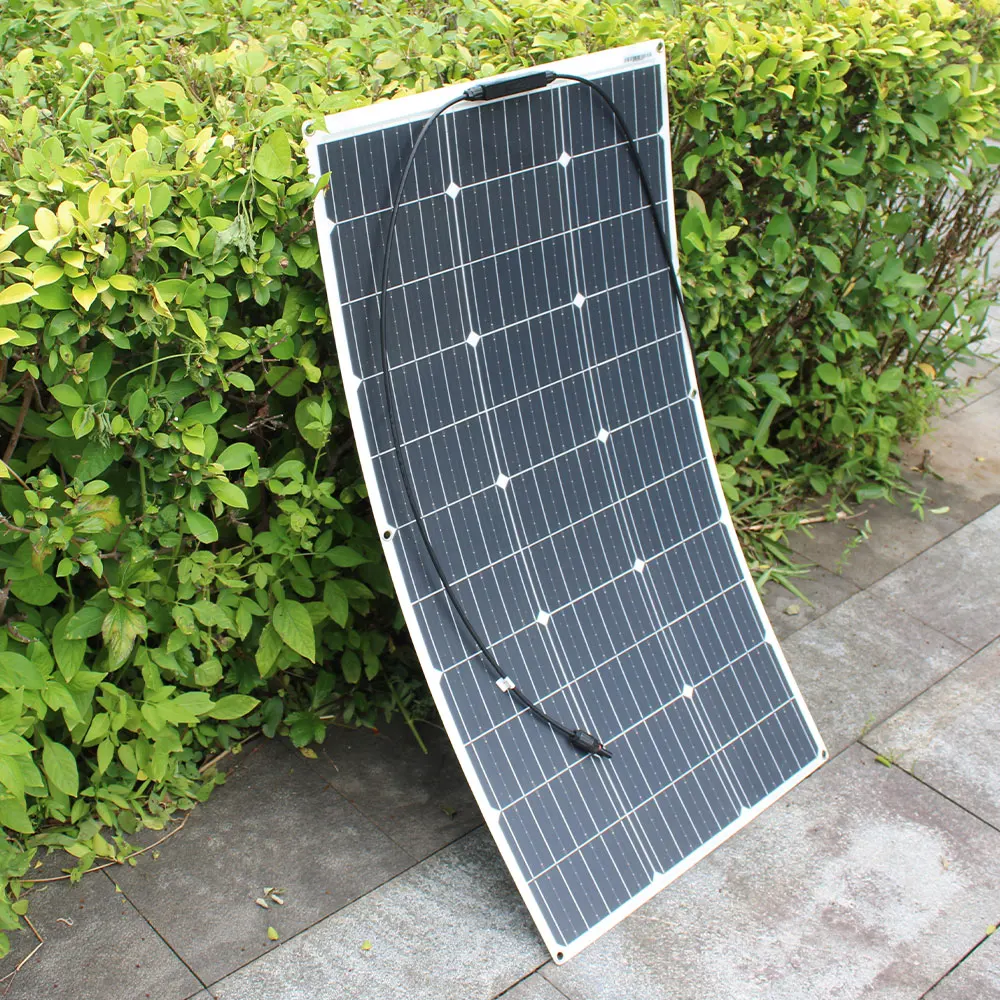

Different with traditional solar panels which are rigid and often enclosed in tempered glass, the 100W Flexible Solar Panel is anything but traditional. The 100W Flexible Solar Panel is thin and capable of flexing up to 30 degrees that can easily be installed on curved surfaces, high efficiency up to 21% with small size for big power output, light weight just 1.6kg only a quarter of its traditional 100W glass solar panel. This panel can also be used for various applications, including providing power on a boat, van, golf car, tricycle, tent roof, even though hanged on window to power the lights and other DC applications. The 100W solar panel can charge the 12V or 24V lead acid battery.
Advantages

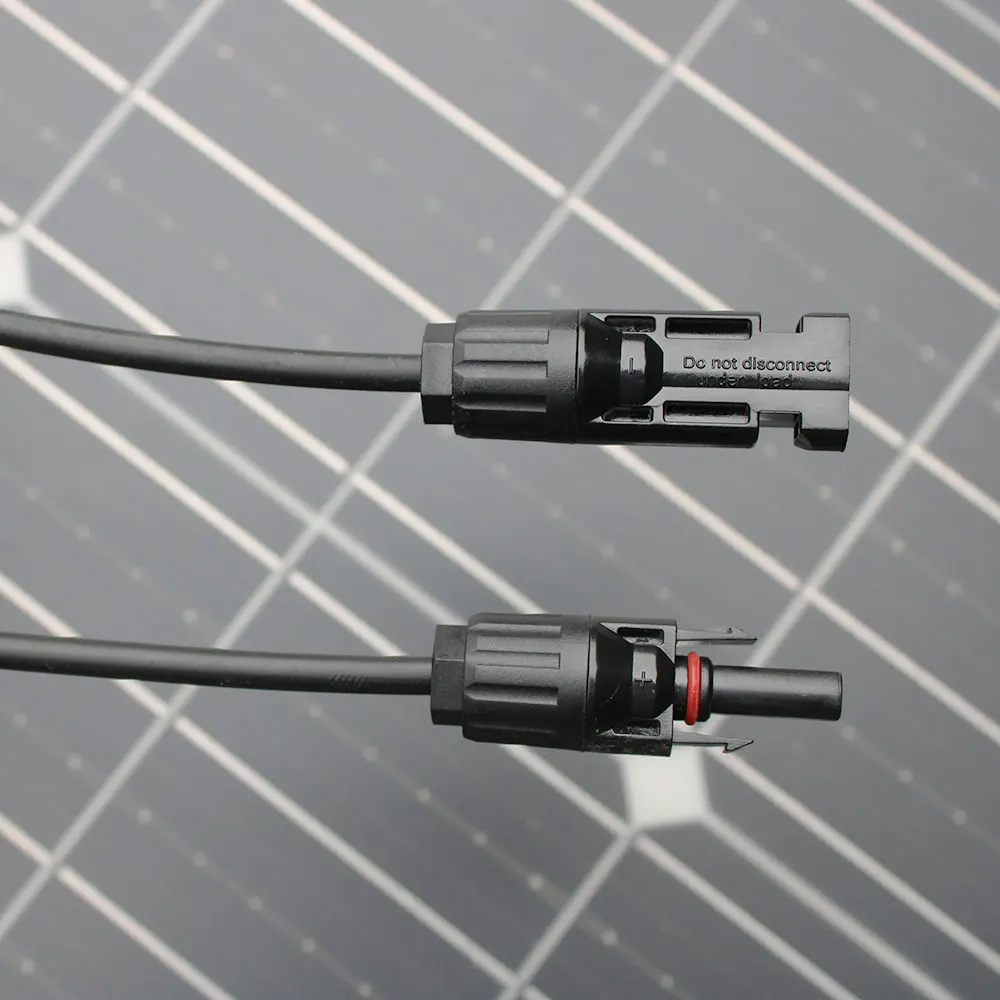

Perfect for 12 volt battery charging, multiple panels can be wired in series for 24 48 volt batteries charging. It is better to use with a controller to protect the battery, with MC4 Connector, the solar panel can be connect to the solar controller/regulator easily.
Good bendability: The solar panel can be curved to a maximum 30 degree arc, allowing to be mounted on an RV, boat, cabin, tent, car, trucks, trailers, yacht, motorhome, Roofs, or any other irregular surface.

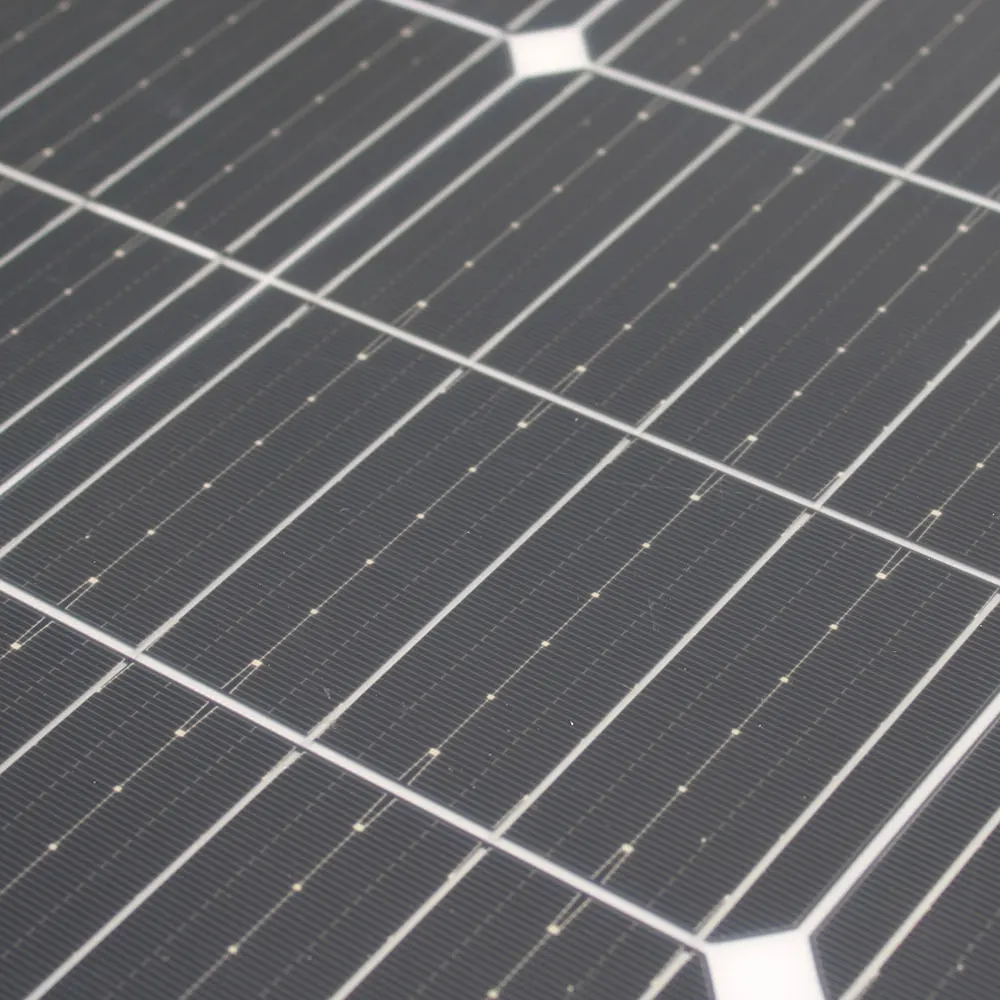

High conversion efficiency: High efficient monocrystalline solar cell, adopt unique back contact technology and remove electrodes on the solar cell surface that block the sunshine to increase the solar panel conversion efficiency up to 50% more efficiency than ordinary.
Durability and high waterproof grade: High temperature resistance, anti-corrosion, anti-fouling, easier to clean. The solar panel made of advanced water resistant material. It is far more durable than traditional glass and aluminum models.

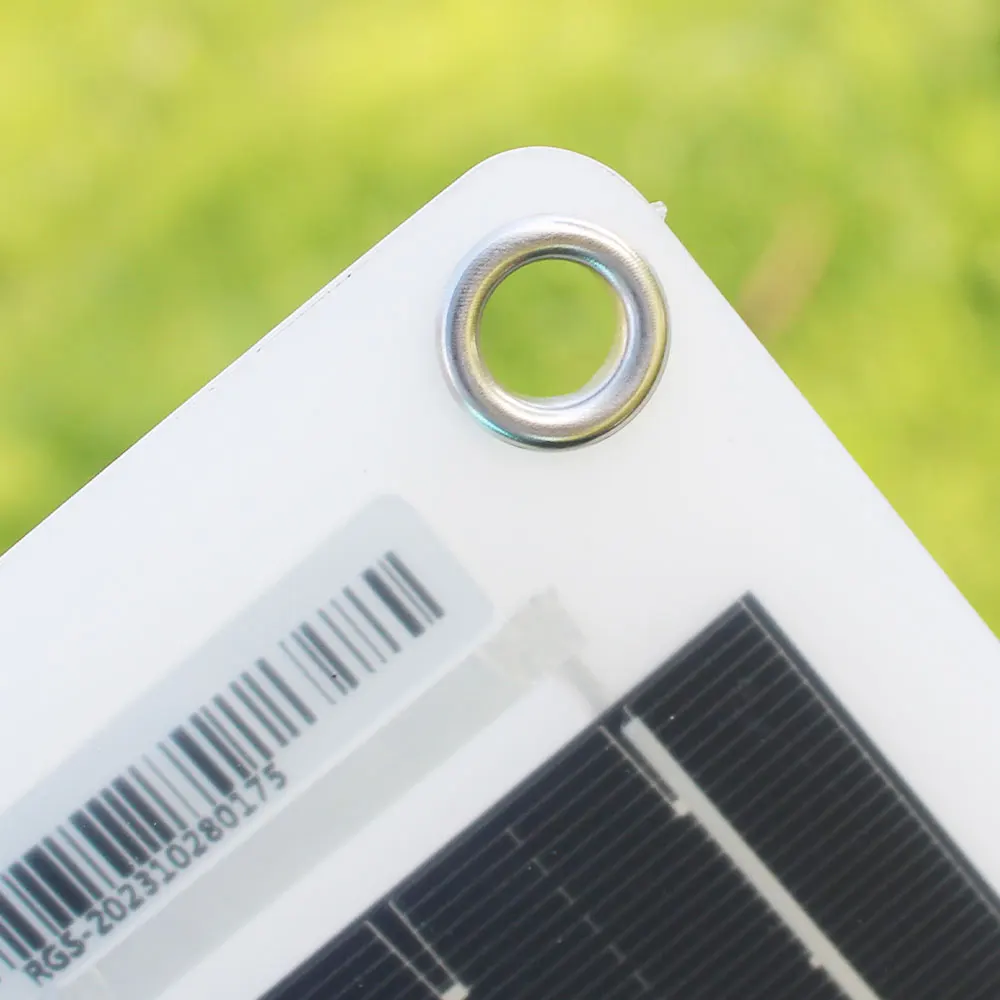

Lightweight and easy installation: Only 0.1 inch thick and weighs only 3.72 LBS, this solar panel is easy to transport, hang, and remove, 6 stainless eyelets at the edges for easy installation. Fast and inexpensive mounting, easy to transport and mount. It can be affixed by adhesives, silicon glues, double sticky tapes, zip ties or Velcro, perfect for non-permanent installations.
Electrical Characteristics
Max Power 100W
Max Power voltage 18.18V
Max Power Current 5.5A
Open Circuit Voltage 21.8V
Short Circuit Current 5.83A
Number of cells in Series 33
Mechanical Characteristics
Dimension 970X530X2.5mm
Weight 1.6kg(±0.1kg)
Cable 0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax -0.38%/℃
Temperature coefficient of Voc -60.5mV/℃
Temperature coefficient of Isc 2.2mA/℃
NOTC 47℃+/-2℃
Operating Temperature -20℃ - +65℃
Safety Instructions:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
System Connection:
1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
About the parcel send from China
Sometimes the customs will charge the clearance fees. If you reject the item because of customs clearance, you will have to pay for the shipping cost of the returned item.
When the goods arrive at the destination country, please contact the local logistics service provider for customs clearance and delivery.
- Stock: In Stock
- Model: solar panel kit 100w 200w 300w 400w 500w 600w 12v solar battery
