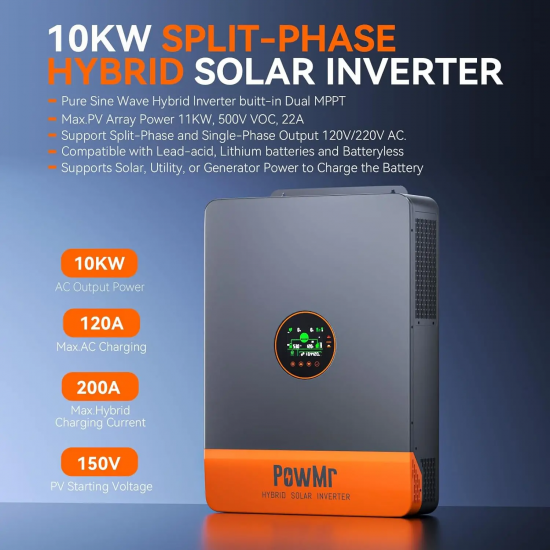

PowMr 10KW Split Phase Inverter 48V 110V 220V Hybrid Solar Inverter Dual MPPT Dual Output Off Grid with MPPT 200A Solar Charger

MODEL

POW-SunSmart8K

POW-SunSmart10K

CANBESET

INVERTER OUTPUT

Rated Output Power

8,000W

10,000W

Max. Peak Power

16,000W

20,000W

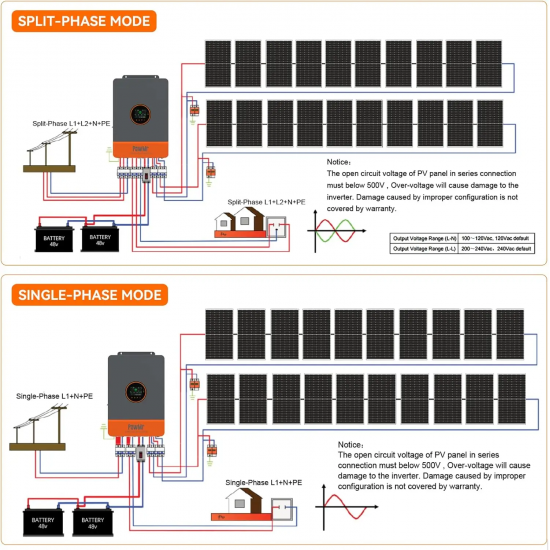

Rated Output Voltage

120/240Vac（split phase/single phase）

Y

Load Capacity ofMotors

5HP

6HP

Rated AC Frequency

50/60Hz

Y

Wave form

Pure Sine Wave

Switch Time

10ms（typical）

Parallel capacity

/

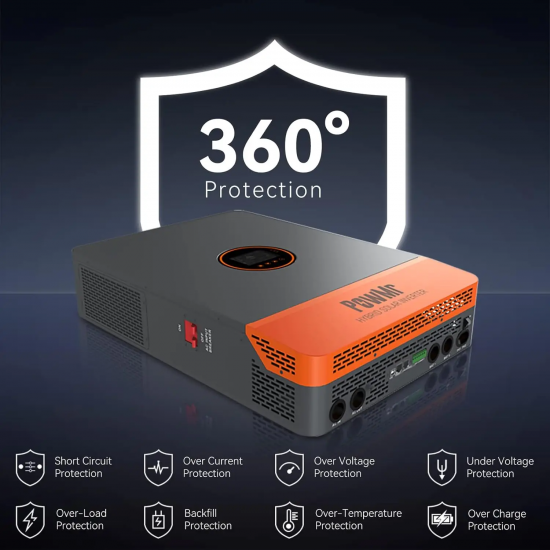

Overload

After triggering the overload protection the inverter willresume output after 3 minutes, 5 consecutiveoverloads will switch off the output until the inverter isrestarted.

(102%

(110% < load < 125%) ±10%: error and output shutdown after 10s.

Load>125%±10%:errorreportedand output

switchedoffafter5s.

BATTERY

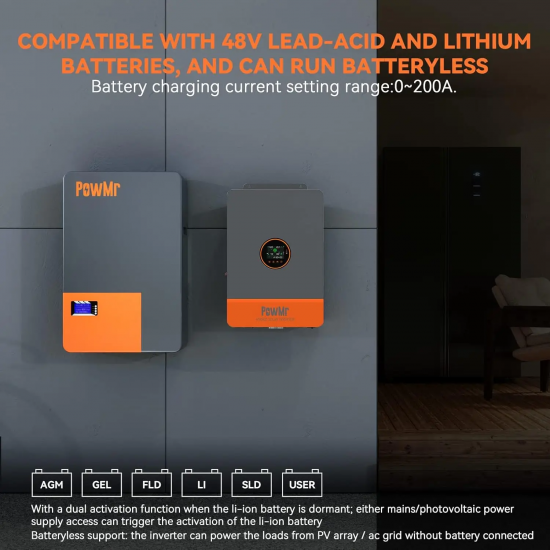

Battery Type

Li-ion/ Lead-Acid/User Defined

Y

Rated Battery Voltage

48Vdc

Voltage Range

40-60Vdc

Y

Max. MPPT Charging Current

200A

Y

Max. Mains/Generator Charging

Current

100A

120A

Y

Max. Hybrid Charging Current

180A

200A

Y

PV INPUT

Num. of MPPTrackers

2

Max. PV array power

11,000W

Max. input current

22/22A

Max. Voltage of Open Circuit

500Vdc

MPPT Voltage Range

125-425Vdc

MAINS/ GENERATOR INPUT

Input Voltage Range

90-140Vac

Frequency Range

50/60Hz

Bypass Overload Current

63A

EFFICIENCY

MPPT Tracking Efficiency

99.9%

Max. Battery Inverter Efficiency

92%

GENERAL

Dimensions

620*445*130mm（2*1.5*0.4ft）

Weight

27kg（59.5lb）

Protection Degree

IP20，Indoor Only

Operating Temperature Range

-10~55℃,>45℃derated

（14~131℉，>113℉derated）

Noise

<60dB

Cooling Method

Internal Fan

Warranty

2Years

COMMUNICATION

Embedded Interfaces

RS485/CAN/USB/ Dry contact

Y

External Modules（Optional）

Wi-Fi /GPRS

Y

CERTIFICATION

Safety

IEC62109-1,IEC62109-2,UL1741

EMC

EN61000-6-1,EN61000-6-3, FCC15classB

RoHS

Yes
