DAXTROMN 6.2KW solar inverter 48vDC hybrid mppt 6200W pure sine wave hybrid charge controller 120A off grid On Grid
After the Ukrainian friend paid, the package was sent from the EU warehouse, the tracking number was updated within 2-3 working days, and it was delivered in 10-15 days.

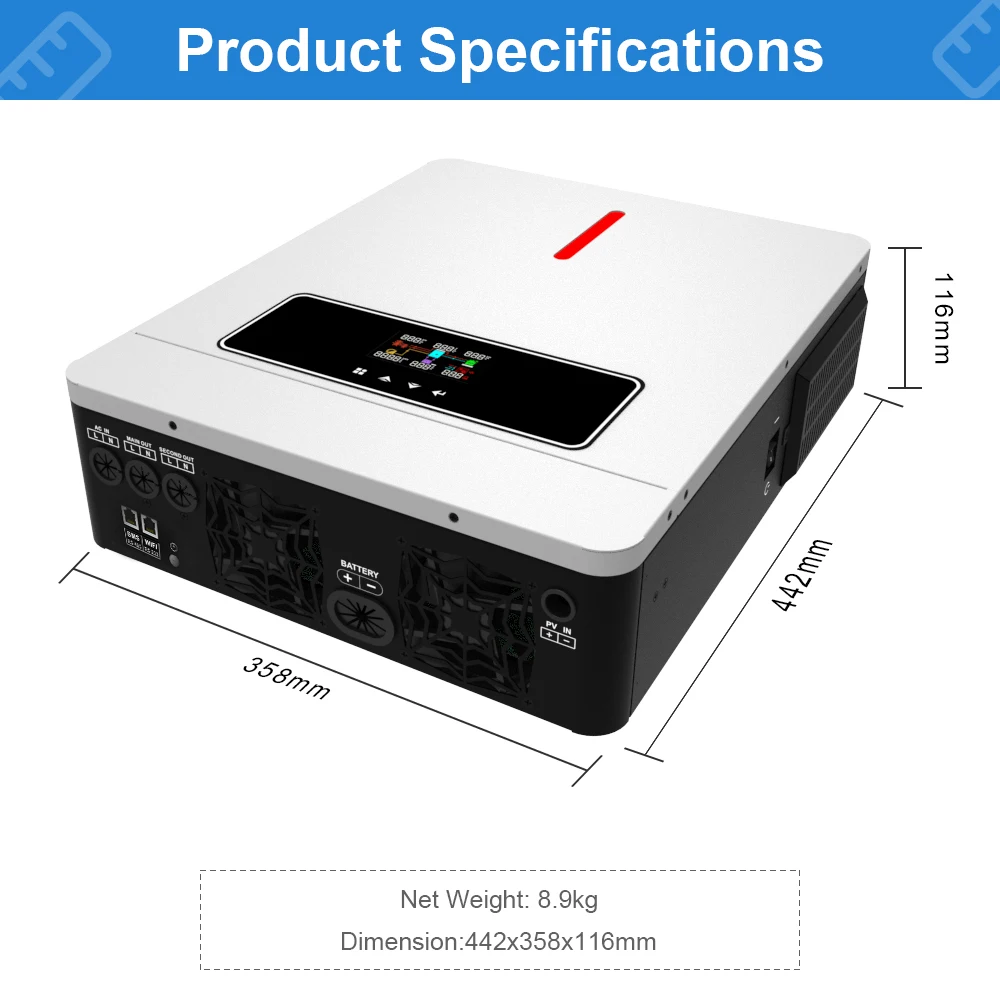

AGH-6.2KW PRO Hybrid Solar Inverter Features
1. Pure sine wave.
2. Output power factor 1.0.
3. Built-in MPPT 120A solar charger.
4. Photovoltaic input voltage 60-500VDC.
5. Can work without battery.
6. Optional WiFi remote monitoring.
7. Support multiple output priorities: USB, SUB, SBU.
8. Removable dust cover, suitable for harsh environments.
9. Can be connected to the grid.
10. Support PACE PYLON communication protocol BMS.
11. Can connect lithium iron phosphate battery through RS485 interface.
12. Lithium battery activation function, can be activated by mains or photovoltaic system.
13. 2 load outputs.
14. One-key factory reset.
15. Built-in RS232 (WIFI) / RS485 (BMS) port, you can configure the BMS battery charging protocol through RS485 to extend the battery life.
What is 2AC out function?
DO NOT CONNECT THE SECOND OUTPUT TO THE GRID,IT WILL DAMANGE YOUR INVERTER
What is the BMS model?
Difference between BMS and without BMS:
If the battery has BMS, after plugging in the BMS, the inverter and the battery will communicate and automatically adjust the charging voltage cut-off voltage and other parameters, and various parameters will be adjusted at any time according to the condition of the battery, which will be a higher level for the life of the battery and the safety of use.
The inverter and battery need to have BMS functions at the same time to communicate with each other.
Question & Answer
Q:Whats the Rated output power ?
A:Its 6200W for Model:AGH-6.2KW-PRO
Q:Whats the max charge currency for battery ?
A:Its 120A
Q:Whats the MAX DC PV Input?
A:Its 500VDC
Q:How many AC output ports?
A:2 loads ouput
Q:How many volts of external battery use ?
A:AGH-6.2KW-PRO 48V
Q:What BMS protocols are supported?
A:PACE and PYLON
Q: Can it support parallel or series connection?
A:No it can not support
Q:Whats the warranty?
A:1 Year
Q:If it has Wifi Model ?
A:Yes
Q: I am a distributor, can we have long-term cooperation?
A: Yes, large projects and wholesale needs can enjoy personalized pricing.
Q: Why can't I buy inverters from your store?
A: Normally, we cannot provide accurate logistics prices for your country. If you have any needs, please feel free to contact us.
Note:
This is a wide voltage Hybrid Solar inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 90V for the inverter to work normally, if with external battery 60V is working.
- Stock: In Stock
- Model: Daxtromn 6.2KW Hybrid Solar Inverter 48V 230VAC Pure Sine Wave I
